Pre-Engineered Buildings

We specialize in manufacturing and commissioning pre-engineered buildings (PEB) made in steel. Since the structure is built to order, it can be of any size and fulfill a wide range of structural and aesthetic design requirements.

Advantages of PEBs over RCC structures & conventional steel buildings

Cost Effective

Material optimization, less labour required

Speed

Project completion in 10-12 weeks

Large Spans

Clear spans up to 75m

Relocatable

Future expansion & relocation possible

Eco Friendly

Steel is 100% recyclable

Save Resources

No water or sand needed for construction

Typical Frame Types

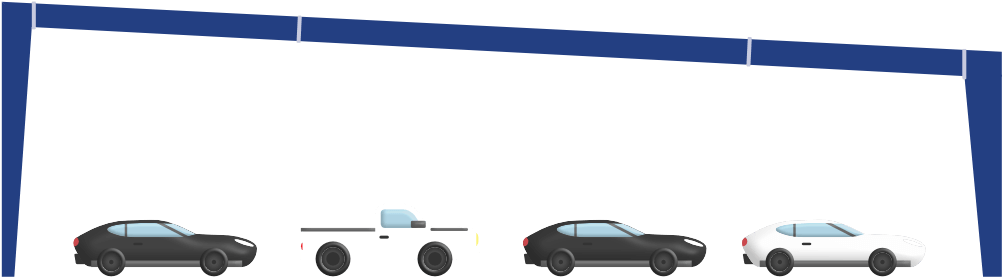

Clear Span, CS

Clear Span, CS

Max practical width
75 m
Ideal when unobstructed space is required. E.g. airplane hangars & factories needing flexible layouts

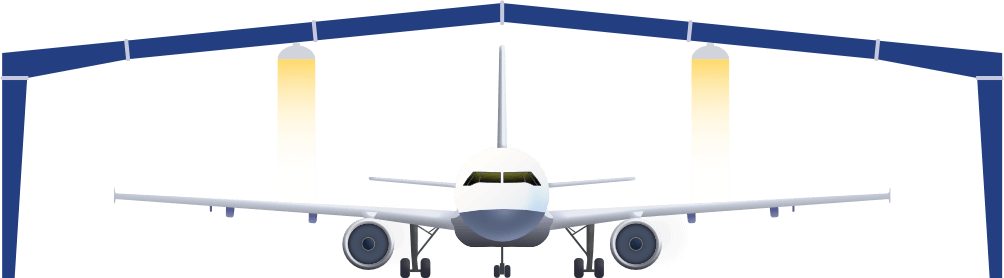

Multi-Span, MS-1

Multi-Span, MS-1

Max practical width per module
70 m
One interior column, usually at the ridge line. This allows for wider spans compared to clear span frames.

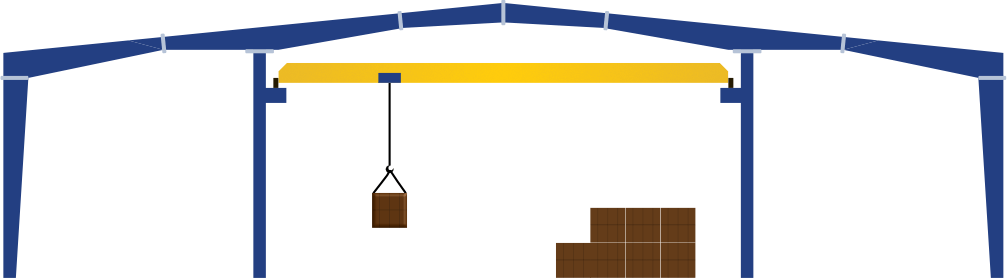

Multi-Span, MS-2

Multi-Span, MS-2

Max practical width per module
70 m
Two interior columns. This allows for wider spans & the possibility of overhead cranes in one or more bays.

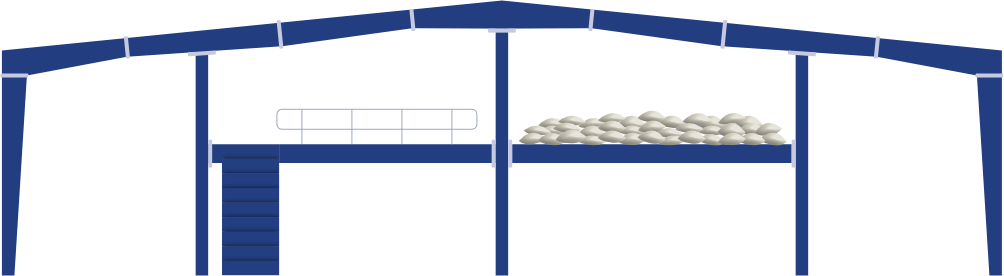

Multi-Span, MS-3

Multi-Span, MS-3

Max practical width per module
70 m
Three or more interior columns. This allows for the widest possible building widths of all frame types.

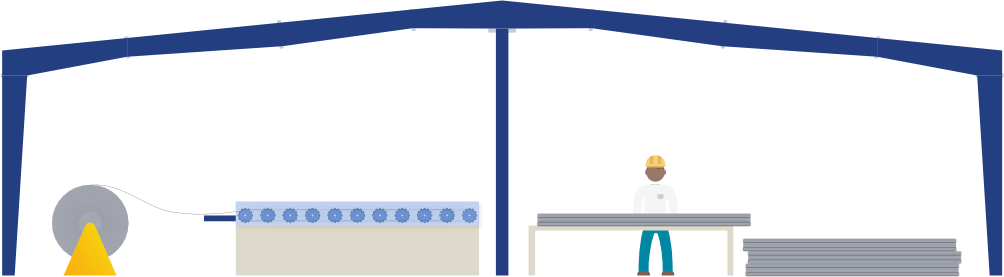

Multi-Gable, MG

Multi-Gable, MG

Max practical width per module
80 m
Allows for large widths without great increase in ridge height. A valley gutter is provided at the valley.
Single Slope, SS

Single Slope, SS

Max practical width
50 m
This frame type can be used for smaller structures such as parking lots, ancillary structures, etc.
